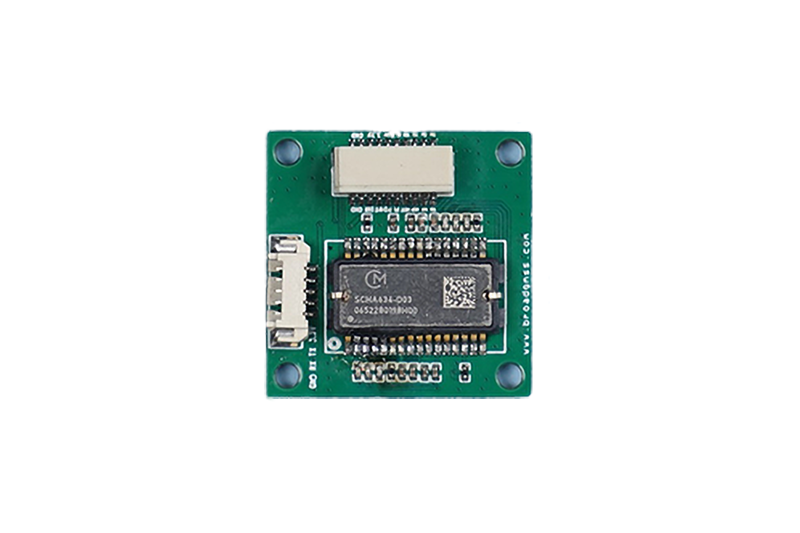

RAC-V2

RAC-V2 is a high-performance inertial navigation module designed for the automotive navigation field. When the GNSS system signal accuracy deteriorates or satellite signals are lost, the product, without relying on odometer information, uses pure inertial navigation technology to provide high-precision positioning, speed measurement, and attitude measurement for the vehicle over extended periods.   Performance Indicators Frequency Points 0.3‰ (Error to Loss of Lock Distance Ratio) Update Rate 100Hz Output Protocol NMEAGIAVP 0183GPINS Hexadecimal Protocol Baud Rate 115200~460800bps Inertial Navigation Characteristics Pitch and Roll Angle Accuracy 0.2°(1σ) Accelerometer Range: ±16g Zero Bias Stability: 0.06mg Gyroscope Range: ±300°/s Zero Bias Stability: 10°/h Physical Characteristics Operating Voltage DC 3.3V Power Consumption 220mA@3.3V Functional Interface UART Interface Module Dimensions 30mm*30mm*8mm Operating Temperature -30~85℃ Storage Temperature -40~125℃
